Multifunction Protective Device

The amazing facts of creating a healthy operating environment
Do you want to save your pumps from consuming more resources, not performing productively or burning?


It is a multifunction digital protective device for submersible pumps and electrical and electronic appliances. It reveals itself by discovering the right technologies and sustainable practices in shaping the performances of Open well and Submersible pumps. An intelligent effort in creating the performance of the future today!

As consumers continuously grow – the load on the electrical system also grows. In the event of overload or a short circuit, it safely disconnects the circuit and thus sensitively protects the electrical device. Its user-friendly and future-ready design creates many opportunities in protecting electrical devices. Overload and short-circuit currents can be caused by multiple electrical consumers operating simultaneously, exceeding the allowable current. They can occur suddenly due to incorrect operation or gradually due to age-related defects.

The risk of overload and short-circuit is particularly high in the pump industry and poses new challenges. Now, it is required to protect, measure, and prevent electrical assets against electrical faults and failures.

 M Series Protective devices
User-friendly operations
Digital displays
Programmable
Wide range of applications
A high degree of return on investment
Future-ready design

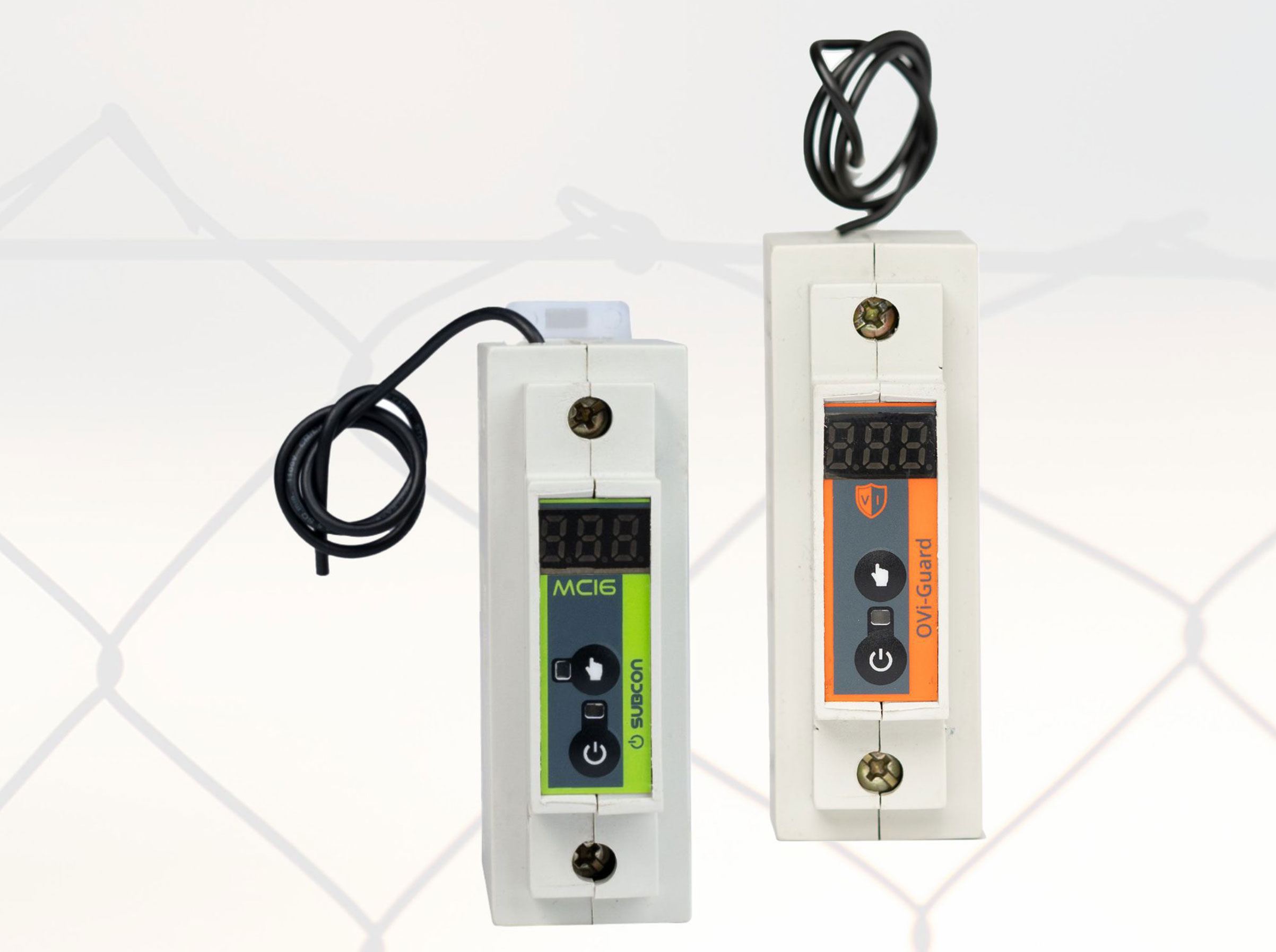

MCB-type protective devices from Akira’s portfolio meet the enhanced requirements of performance of submersible and open-well submersible pumps. Compared to conventional protective devices, these are more extensive and inclusive in terms of sensitivity and performance. Electricity and production downtimes must be deliberately prevented in these cases using coordinated device combinations if economic losses are to be avoided. Our devices protect motor and pump components in cases of unhealthy operating conditions. These devices are a fundamental component in end-to-end protection efforts for the pump industry and infrastructure.

 M Series Protective devices
  • Nominal Input Voltage 1Ø 230Vac

  • Working Voltage Range 1Ø 150-300Vac single phase

  • Current Measurement range 1Ø 6 Amps Max

  • Nominal Input Frequency 50Hz

  • Metering accuracy Class 2 @ FSR

  • Dimension (L x H x W) 60 x 75 x 50 mm

  • BS 546 Type D (Indian small 3pin) input

  • Segment LED Display

  • Universal output socket

  • High/ Low voltage protection

  • Overload cut-off and short-circuit protection

  • Assured protection from the connecter device from overvoltage

  • Dry run protection for motors

  • Programmable timer option for different applications

  • Inbuilt water level management option

  • Manual / Semi Auto/Auto/option

  • visual Indication for Status and Fault

Application

Single-phase submersible pumps.
Single-phase open well submersible pumps.
